Guest Tarks Posted November 28, 2007 Share Posted November 28, 2007 hi anyone lol, ive got a mk5 escort 1.8 16v 1994 with a factory fitted alarm/immobiliser my car wont read any of the 3 keys, master included and the immo stays on i get a flashing light next to clock then it flashes 1 then 3 times i believe giving me a pats fault code of 13! how do i bypass this fault as im stuck without my car! basically i need a fault code description or a way of disabling my immobiliser or a root problem fix asap ! help me pleeeeeeeeease!!!!!! what ive done so far:- checked all earth connections to fuel pump,ecu disconnected battery for 4 hours then re-connected used all keys possible checked all fuses in car and under bonnet, dissabled bonnet alarm button as suggested on a clueless talking forum on net in usa lol nothing has worked so im steering towards a by-pass method any help out there ? Link to comment Share on other sites More sharing options...
Guest sjc Posted November 28, 2007 Share Posted November 28, 2007 mate i honestly wish i could remember, im sure it describes in the hanbook how to program a new key...it may be worth a go Link to comment Share on other sites More sharing options...
Guest matt-the-dj Posted November 29, 2007 Share Posted November 29, 2007 (edited) sjc is right, it is in the handbook but i cant remember if you need a recognised key to start the process of adding new ones, i will look this afternoon for you Edited November 29, 2007 by matt-the-dj Link to comment Share on other sites More sharing options...

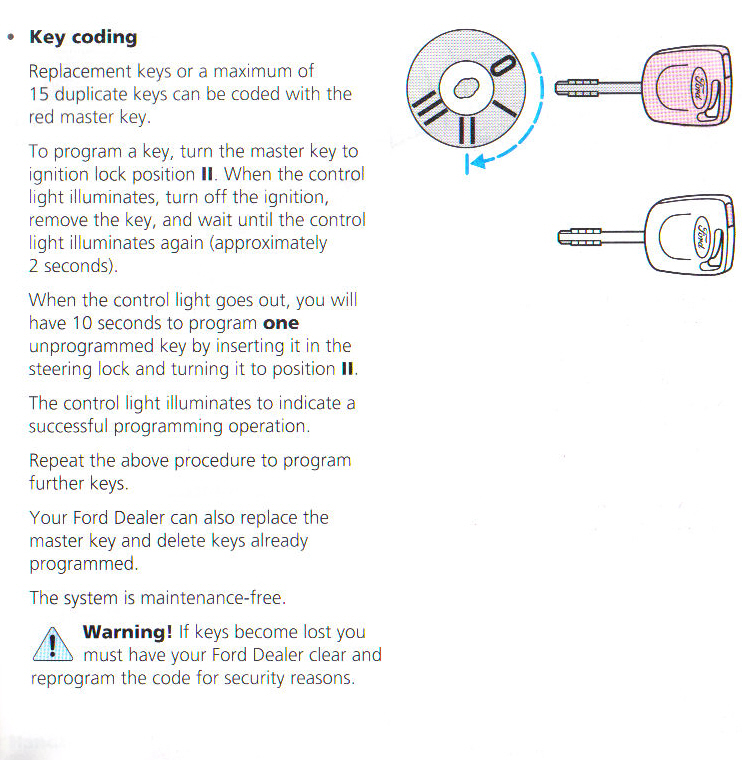

Escort Cabriolet Club Posted November 29, 2007 Share Posted November 29, 2007 Here you go mate, heres the section on Key Coding, hope it helps !!! Link to comment Share on other sites More sharing options...
Guest Tarks Posted November 29, 2007 Share Posted November 29, 2007 cheers guys ive done that and nothing happens, i dont even get the immo recognising the master so im stuffed, im now looking at wire diagrams to eliminate the immo pats system/bypass it, ive got the dash out and im half way through lol its seems possible in my head but im going to try and bypass the immo fooling the ecc/ecu to do its job. Link to comment Share on other sites More sharing options...
Escort Cabriolet Club Posted November 30, 2007 Share Posted November 30, 2007 Never mind mate, somthing very wrong somwhere, I hope you sort it out !!! Link to comment Share on other sites More sharing options...
Guest Tarks Posted November 30, 2007 Share Posted November 30, 2007 well the PATS removal was very easy the cars now up and running. the only thing i did learn is the eec/ecu is interupted buy the pats system and doesnt actually recieve a signal to function as i first thought. The pats control the fuel pump and controls the spark via blocking a control signal to or from eec/ecu. take this away and you have restored electrics, by connecting the power from relay on the fuel pump to the line out of the pats this restores normal function of the fuel pump. the only draw back is ...............the main control for the right hand stalk for the window wipers and screen jets run through the PATS so ive now got no function at all on this. im looking into bypassing this issue tomorrow it shouldnt be a great problem its only one wire effected the black and blue wire (on mk5 that is) so my cars up and running but its winter and no windcreen wipers or washers lol bugger!!!! can anyone help with this? Link to comment Share on other sites More sharing options...
Guest sjc Posted December 5, 2007 Share Posted December 5, 2007 well done Tarks.....sorry I havenet got any mk5 schematics so cant help....but surely youve bypassed the hard bit.....wipers will be a stroll in the park for ya Link to comment Share on other sites More sharing options...
Vincygav Posted January 6, 2008 Share Posted January 6, 2008 You could take the central locking/alarm fuse out, this should bypass it to allow you to get it started. Link to comment Share on other sites More sharing options...
Vincygav Posted January 6, 2008 Share Posted January 6, 2008 although if you do the above,you would have no central locking until you get it sorted Link to comment Share on other sites More sharing options...
