Hi all

Just a brief history and a few pics of my Mk4 restoration/Project

Ive owned the car since 1994 and enjoyed many years driving it about, but in 2001 it popped a driveshaft whilst my wife was driving it home from work late one night leaving her stranded and decided it was time for her to have a new car, so not long after we ended up at the local Ford dealers and bought a Brand New Fiesta Zetec S.

I run the cab until the tax run out and then parked her up, it stayed that way for a good while whilst I build my garage. When it was finished I began the restoration stripping the car back to a bare shell, I found a few rust spots in all the usual places, battery tray rear arches wings/front panel as well as the outer Sills & on the inner wings close to the hinge mountings. I was surprised to find how good the floor was though.

I then set out trying to source new genuine panels required to repair the old shell but after a few years of looking and finding every panel apart from the drivers rear quarter panel the opportunity came along to purchase a brand new Shell, the old shell was then abandoned (I regret this now tho).

Its now awaiting a rollover jig to be made and a few more exterior parts and then the resto can finally truly begin.




RS Turbo 33.jpg

RS Turbo 38.jpg

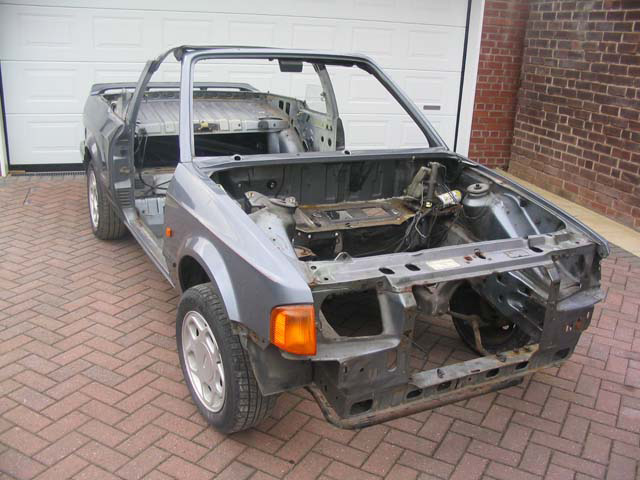

Brand New Shell - Still in factory primmer


New Genuine Spare Body Panels

New Genuine RS Turbo Bonnet (To Be Used On The Cab)


New Genuine  Front Wings


New Genuine Front Panel


New Genuine Cross Member


New Genuine Scuttle Panel


New Genuine Doors (Passenger Door x2 - 1 Fitted to New Shell & 1 Painted by Previous Owner)


New Genuine Rear Quarter Panels



New Genuine Boot Floor

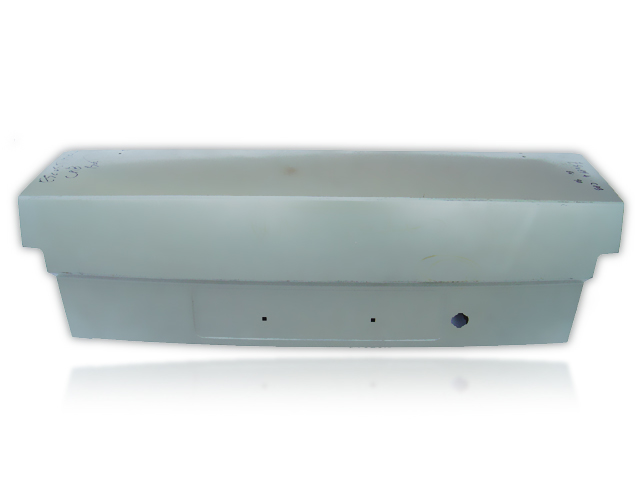

New Genuine Mk4 Boot Lid


New Genuine Rear Lower Valance


New Genuine Light Cluster Panels





Share this post


Link to post
Share on other sites

Lights

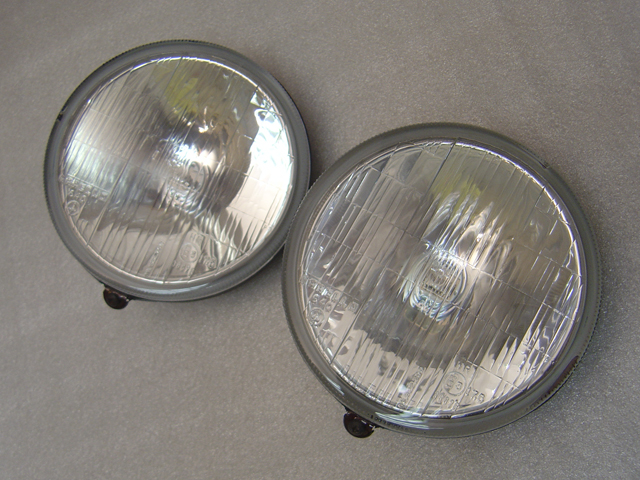

New Genuine Corello Headlamps


New Genuine Headlamp Covers


New Genuine Indicators


New Genuine Corello 640 Spot Lamps


New Genuine 90 Spec Spot Lamp Brackets


New Genuine Spot Lamp Bracket Backing Plates


New Genuine side Repeaters


New Genuine Rear Light Clusters


New Genuine Rear Light Cluster Gaskets


New Genuine Rear Light Cluster Bulb Holders


New Genuine Number Plate Lamp


New Genuine Head Lamp Fixings


Share this post


Link to post
Share on other sites

Wheels

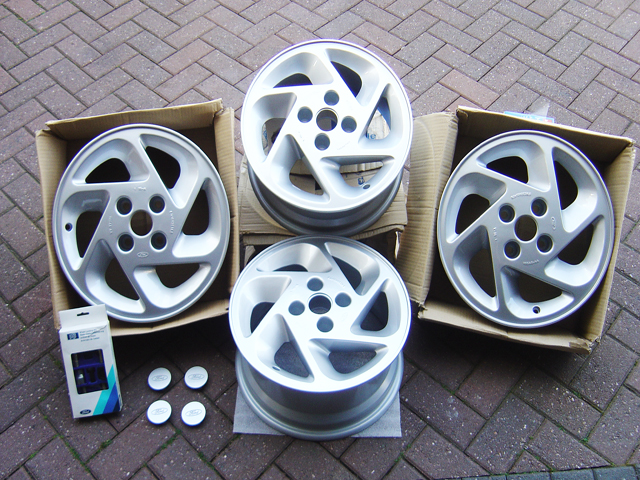

New Genuine RS Turbo Wheels & Centre Caps


Used Steel Wheels Awaiting Refurb

3i Wheels.jpg

New Genuine Steel Wheel Trims

3i Trims.jpg

New Genuine  wheel Nuts


New Genuine  Locking Wheel Nuts






Share this post


Link to post
Share on other sites

Bumpers & Body Kit

New Genuine Front 90 spec Bumper

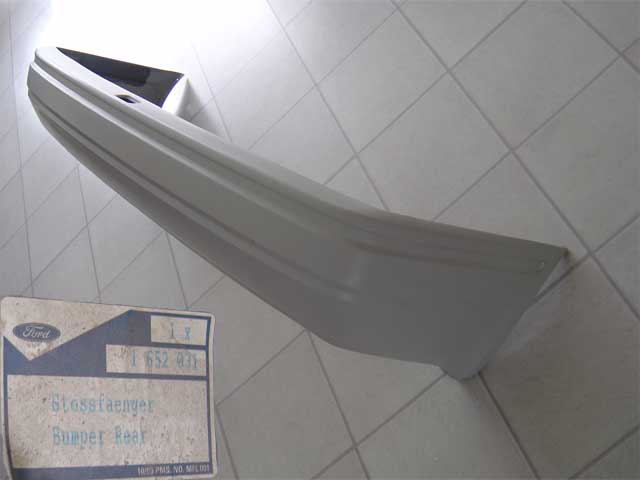

New Genuine Rear Bumper


New Genuine Black Bumper Trim


New Genuine Full Complete RS Turbo Body Kit (2x Passenger Side)










New Genuine Body Kit Retainers


Share this post


Link to post
Share on other sites

Glass

New Genuine Green Tint Heated Windscreen


New Genuine Green Tint Drivers Fixed Glass


New Genuine Green Tint Passenger Drop Glass


New Genuine Green Tint Drivers Rear Quarter Drop Glass

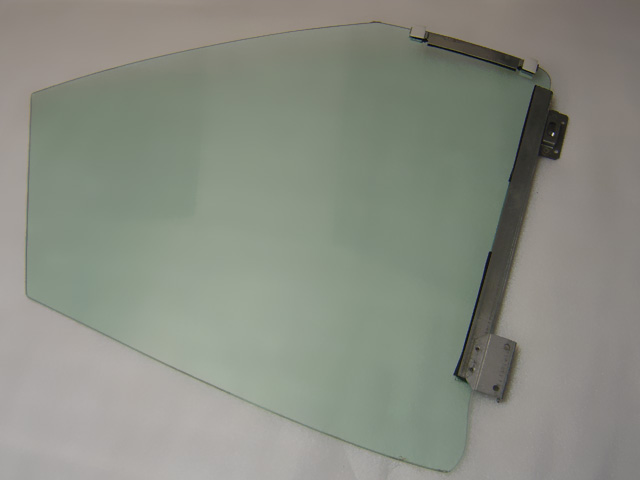

New Genuine Green Tint Passenger Rear Quarter Drop Glass


New Genuine Windscreen Rubber


New Genuine Radio Decode Stickers


Share this post


Link to post
Share on other sites

Roof

New Genuine Outer Roof Skin


New Genuine Roof Padding

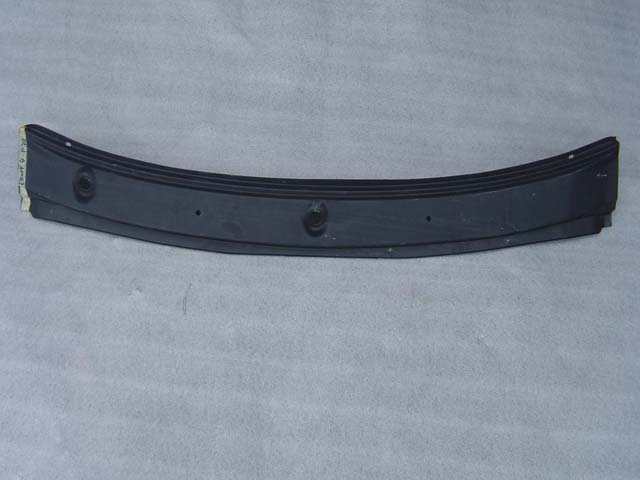

New Genuine Front Roof Seal


New Genuine Roof Cables


New Genuine Rollover Bar Padding


New Genuine Handle Fixing Covers


Share this post


Link to post
Share on other sites

Electrics

New Genuine 90 Spec XR3i EFi Cab Body Harnes


New Genuine Fusebox Cover


New Genuine Battery Cables

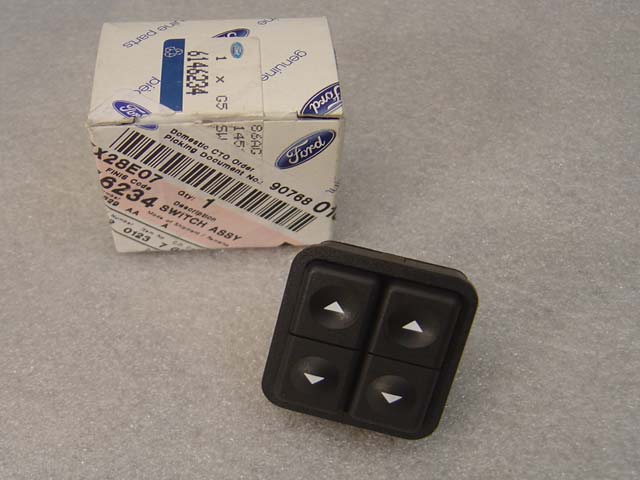

New Genuine Electric Window Switches



New Genuine Electric Roof Switch


New Genuine Indicator Side Repeater Looms


New Genuine Indicator Stalk




Share this post


Link to post
Share on other sites

Dash

New Genuine Dashboard




New Genuine Glove Box Surround


New Genuine Speedo


New Genuine Dash Switches


New Genuine Centre Vent & Heater Control Panel


New Genuine Heater Knob


New Genuine Radio Surround & Ash Tray


Share this post


Link to post
Share on other sites

Steering Column

New Genuine 3 Spoke steering Wheel & Horn Push

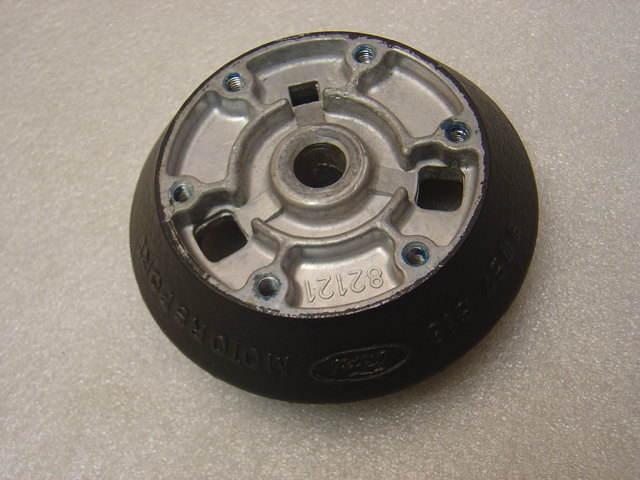

New Genuine Steering Wheel Boss (I Did Fit This But Removed It Again For Storage)

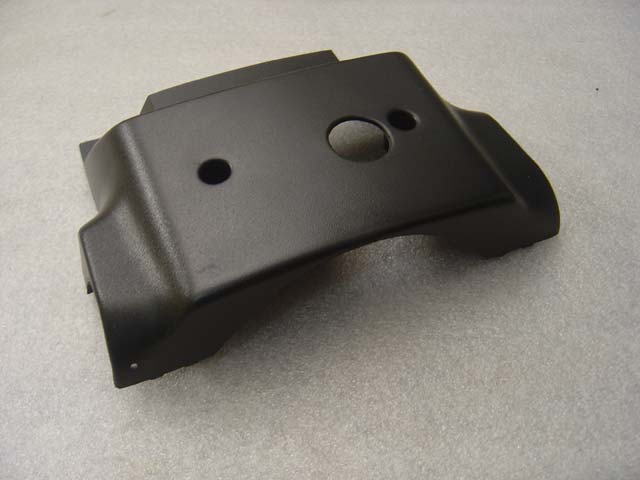

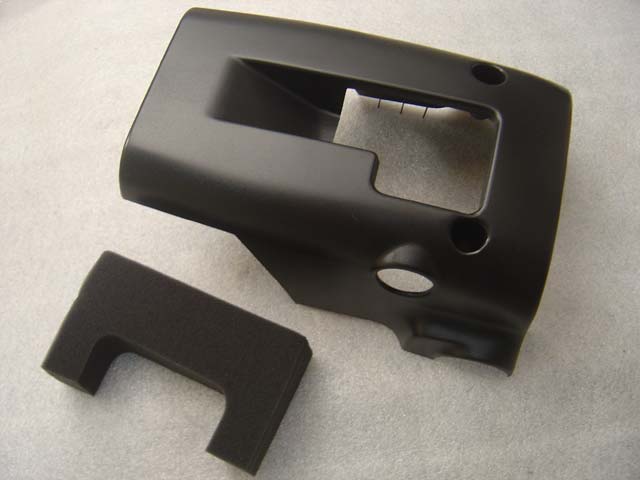

New Genuine Column Surround



Refurbed Steering Column


New Genuine Steering Column Bulk Head Grommet


Share this post


Link to post
Share on other sites

Centre Console

New Genuine Tape Holder

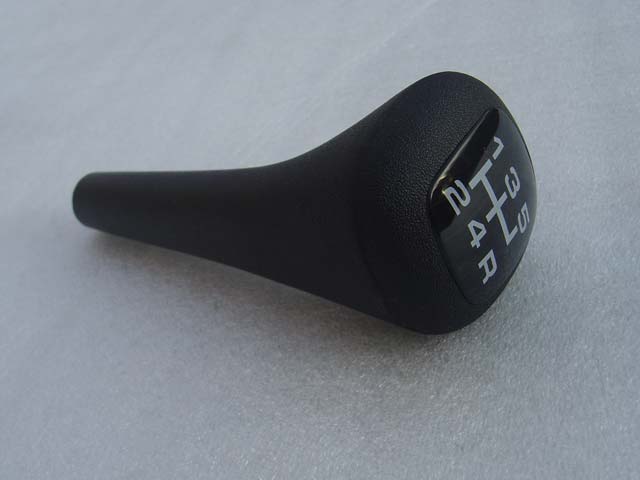

New Genuine Gear Knob


New Genuine Gearstick Gaiter


Share this post


Link to post
Share on other sites

Exterior Trim

New Genuine Ford Badges


New Genuine wing Welts


New Genuine 88 & 90 Spec Boot Decals


XR3i 90 Spec Front Wing & Boot Decals


New Genuine Door Handles


New Genuine Tibby Lockset


New Genuine Tibby Fuel Cap


New Genuine Chubb Lockset

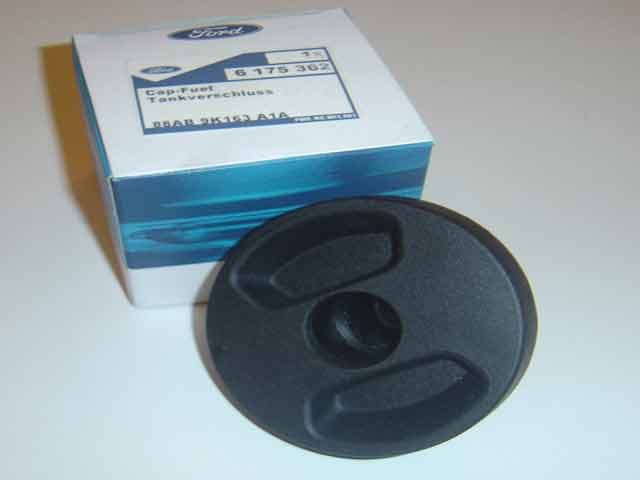

New Genuine Chubb Fuel Cap


New Genuine Door Fame Top Finishing Caps

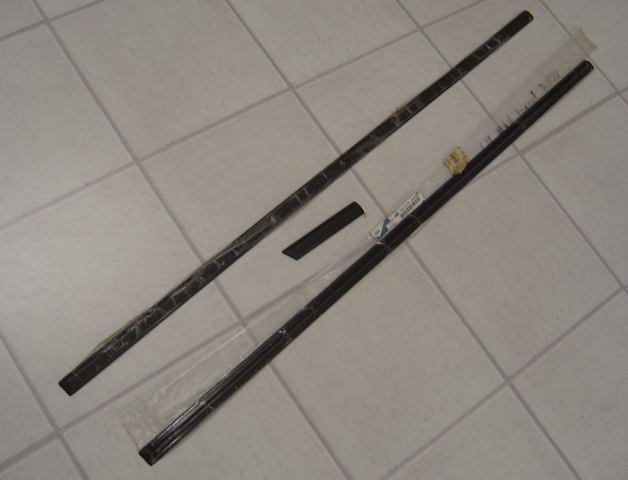

New Genuine Black Side Mouldings (Missing Passenger Side Quarter to Complete Full Set)




New Genuine Boot Hinge Covers


New Genuine Electric Antenna Mask


New Genuine Electric Antenna Fixing Kit




Share this post


Link to post
Share on other sites

Rubbers & Seals

New Genuine Drivers A Post Screen Pillar Seal

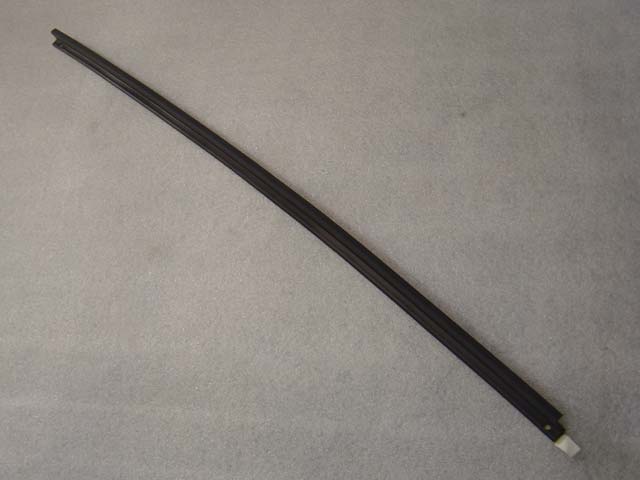

New Genuine Set of Cabriolet Outer Door Weatherstrips


New Genuine Passenger Door Weatherseal Finishing End Seal


New Genuine Set Of B Post Seals


New Genuine Set Of Front Part Door Aperture Seals


New Genuine set Of Rear Part Door Aperture Seals


New Genuine Set of Inner Quarter Panel Windows Seals


New Genuine Roof C Post Seals


New Genuine Boot Aperture Seal


Share this post


Link to post
Share on other sites

Suspension & Steering

New Genuine Front shocks


New Genuine Front Strut Caps


New Genuine Front Strut Top Rubbers & Bearings


New Genuine Front Wheel Bearings

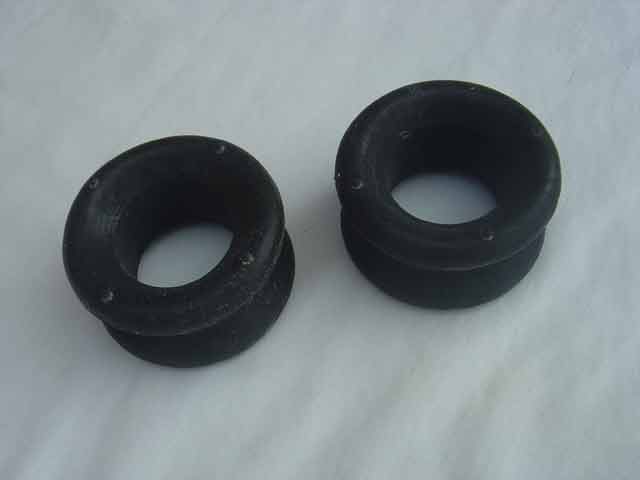

New Genuine Track Control Arms & Anti Roll Bar Rubbers


New Genuine Anti Roll Bar Washers


New Genuine Anti Roll Bar Front Mounting

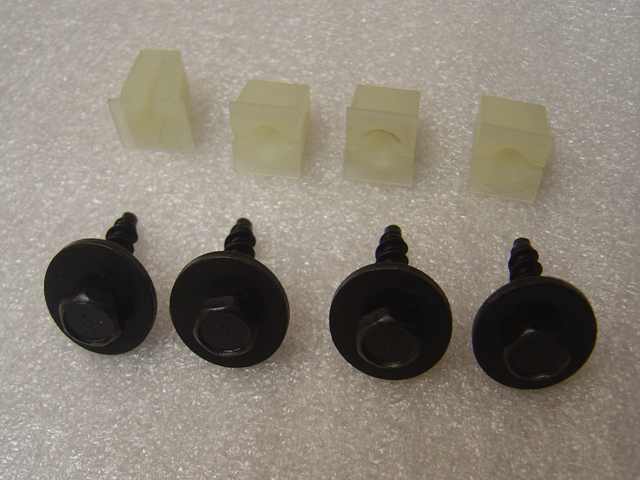

New Genuine anti Roll Bar Clamps & Fixings


New Gen Anti Roll Bar Front Rubbers


New Genuine Rear Shocks


New Genuine Rear Top Shock Absorber Rubbers


New Genuine Rear Spring Isolators


New Genuine Rear Hub Nut Covers


New Genuine Steering Rack Mounting Rubbers


New Genuine Track Rod Ends


Rear Suspension Arms Fixing Bolts & Nuts



Share this post


Link to post
Share on other sites

Interior

New Genuine Interior Mirror


New Genuine Carpet


New Genuine Pedal Rubbers

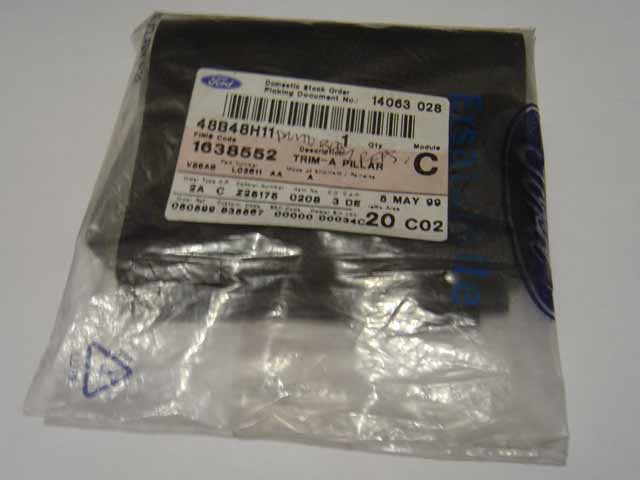

New Genuine A Pillar Cover


New Genuine Rear Window Winder Handles & Caps

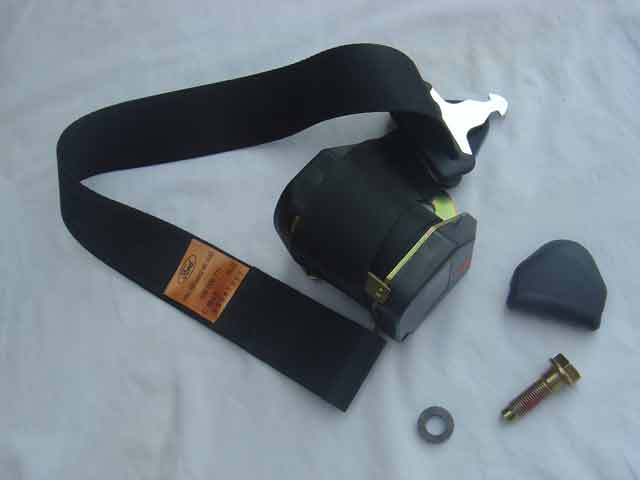

New Genuine Passenger Front Seat Belt


New Genuine Front Seat Belt Latch

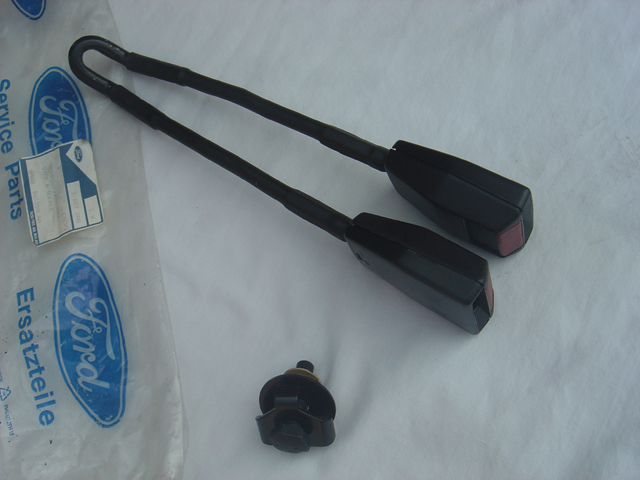

New Genuine Cabriolet Rear Seat Belts

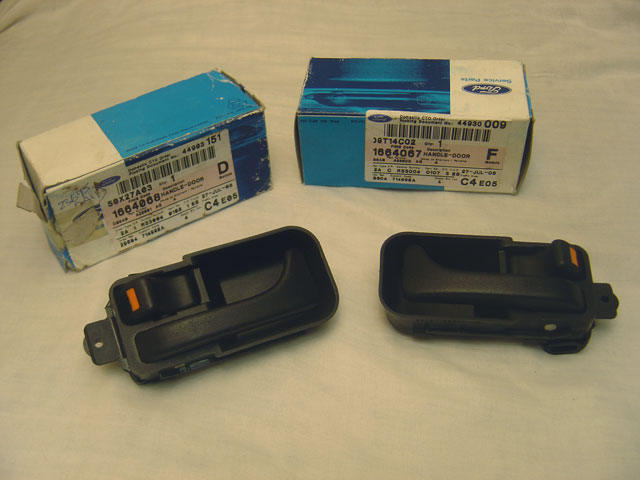

New Genuine Inner Door Release Handles


Share this post


Link to post
Share on other sites

Door Mirrors

New Genuine Drivers Electric Mirror

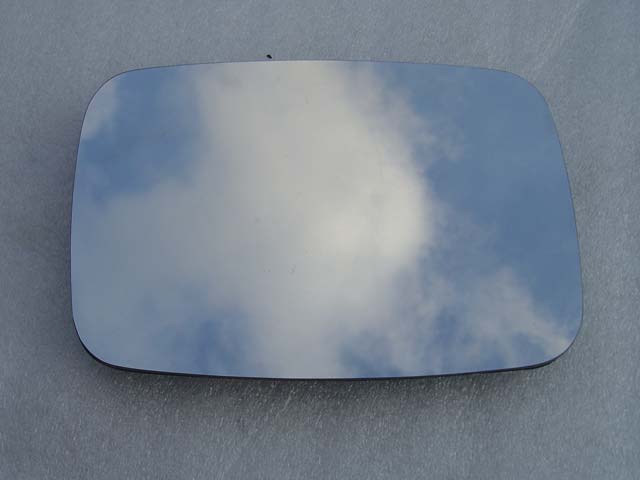

New Set Of Heated Mirror Glass


Share this post


Link to post
Share on other sites

Seats

New Genuine Recaro Seat Base Foams


New Genuine Recaro Left Hand Seat Bolster Foam


New Genuine Set of Recaro Base Supports 90 Spec Material


Share this post


Link to post
Share on other sites

Engine Bay

New Genuine Header Tank & Cap

New Genuine 88 Spec Master Cylinder Brake Fluid Reservoir

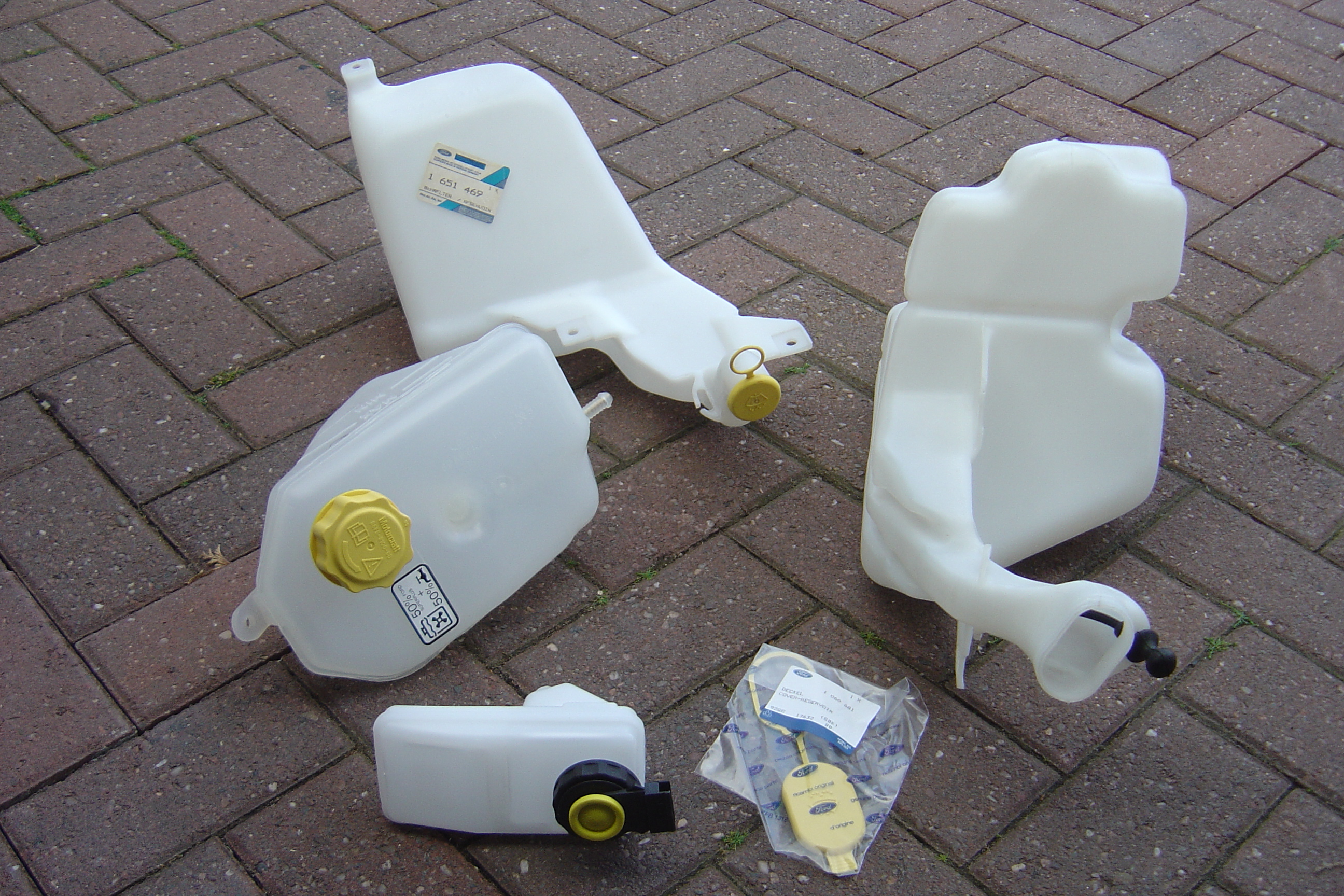

New Genuine 88 & 90 Spec Screen Washer Bottles


New Genuine 90 Spec Brake Master Cylinder


New Genuine Screen Washer Pipe & Clips



New Genuine Bonnet Latch


New Genuine Bonnet Catch


New Genuine Bonnet Front & Side Supports




Share this post


Link to post
Share on other sites

Cables

New Genuine Handbrake Cable


New Genuine Clutch Cable


New Genuine Split Speedo Cable


New Genuine Accelerator Cable


New Genuine Bonnet Release Cable






Share this post


Link to post
Share on other sites

Engine & Gearbox

New Genuine Top Radiator Hose


New Genuine Lower Radiator Hose


New Genuine Top Turbo Intercooler Hose

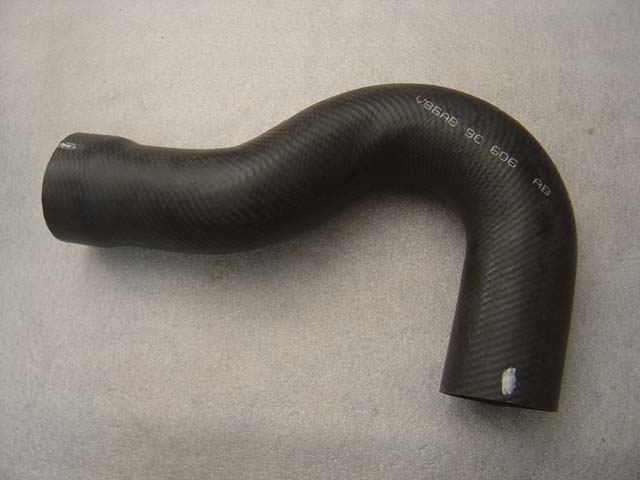

New Genuine Lower Turbo intercooler Hose


New Genuine Amal Valve


New Genuine Radiator Fixing Kit


New Genuine Oil Filler Cap


New Genuine RS Turbo Distributor


After Market Sump

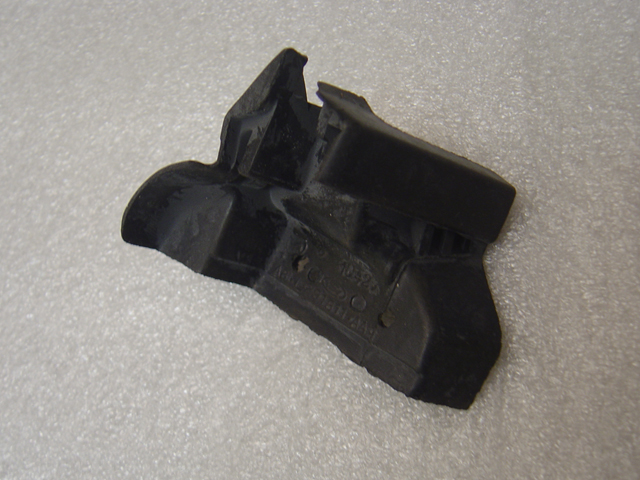

New Genuine Timing Belt Top Cover

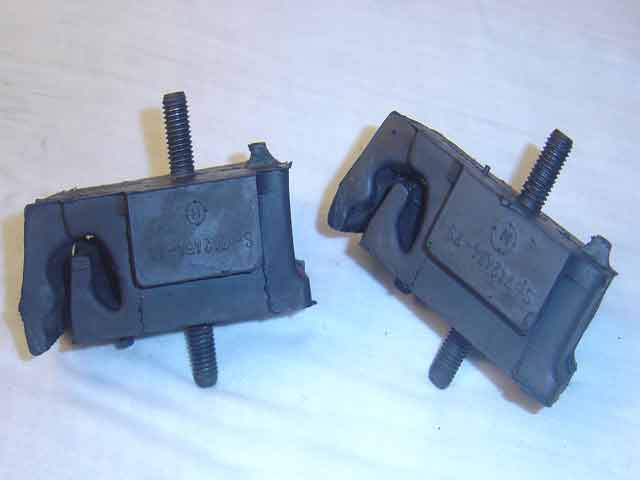

New Genuine Front Engine Mountings
